Details
Features
- Adopt high lumen Samsung 5630 led chip
- Using high quality power supply,PF>0.9
- Color Rendering Index(CRI)>80
- With 3 years warranty
- Energy saving up to 50%.even lighting output.
- Wide range of input voltage: AC 100~240V.
- Instant start, no flicking, no humming.
Parameter
| Model Name | FV-PA-600*600-5630 |
| Input voltage | AC 100~240V or 24V DC |
| Panel Input | DC 55~70V (700 mA) |
| LED Quantity | 120 pcs samsung 5630 led chip |
| Power consumption | 41.65W |
| luminous flux | 3360 lm(white) |
| 2800 lm(warm white) | |
| Color | Warm white |
| White | |
| Color temperature | 2500~4000k(Warm white) |
| 4000~7000k(White) | |
| Life time | >50,000 Hour |
| Operating temperature | -20ºC to + 50ºC |
| Storage temperature | -30ºC to + 60ºC |
| Luminosity | >975Lux(1.meter, White) |
| >850Lux(1.meter, Warm white) | |
| Certificates | CE . RoHS |
| Weight | 4.16 KGS |
| Size | 595X595X10 mm |
| Water proof | IP20 |
| Part number | Color | Voltage | Current | Power | Luminous Flux |
| FV-PA-600*600-W | White | DC 55~70V | 700 mA | 41.65 W | 3360 lm |
| FV-PA-600*600-WW | Warm white | DC 55~70V | 700 mA | 41.65 W | 2800 lm |

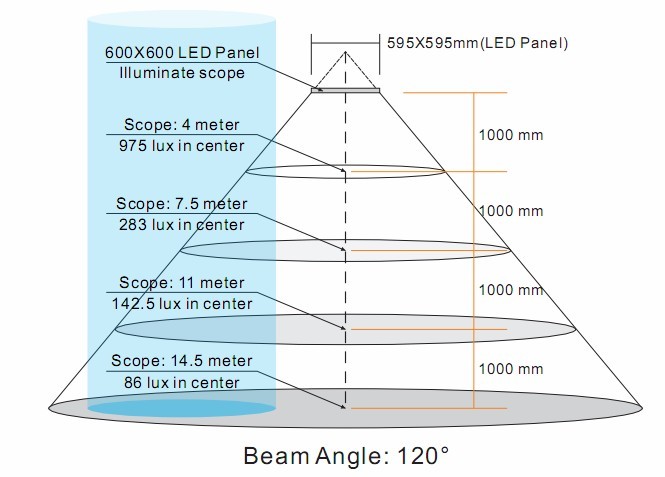

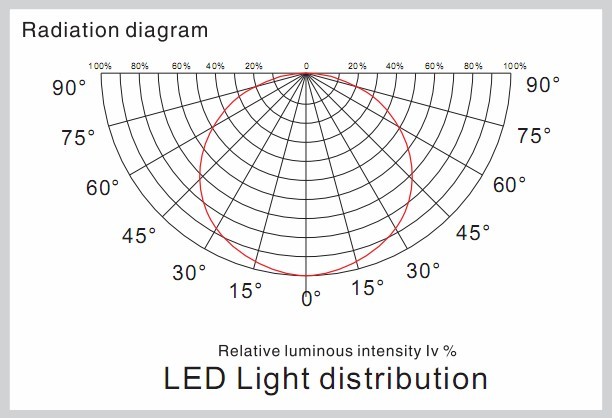

Light Distribution Graph
Illumination Intensity Chart: ( White )
