Details
Features
- Energy saving up to 50%.even lighting output.
- Wide range of input voltage: AC 100~240V.
- Instant start, no flicking, no humming.
- New high efficiency constant current driver.
- Special circuit design, each group of LEDs work separately, avoiding any problem of lighting output caused or influenced by single faulty LED.
- No RF interference.
Parameter
| Model Name | FV-PA-600*300 |
| Input voltage | AC 100~240V or 24V DC |
| Panel Input | DC 25~35V (700 mA) |
| LED Source | 316 pcs Epistar SMD3014 led chip |
| Power consumption | 21.5 W |
| luminous flux | 1680lm(white) |
| 1400 lm(warm white) | |
| Color | Warm white |
| White | |
| Color temperature | 2500~4000k(Warm white) |
| 4000~7000k(White) | |
| Life time | >50,000 Hour |
| Operating temperature | -20ºC to + 50ºC |
| Storage temperature | -30ºC to + 60ºC |
| Luminosity | >478Lux(1.meter, White) |
| >415Lux(1.meter, Warm white) | |
| Certificates | CE . RoHS |
| Weight | 1.9KGS |
| Size | 595X295X10 mm |
| Water proof | IP20 |
| Part number | Color | Voltage | Current | Power | Luminous Flux |
| FV-PA-600*300-W | White | DC 25~35V | 700 mA | 21.5 W | 1680 lm |
| FV-PA-600*300-WW | Warm white | DC 25~35V | 700 mA | 21.5 W | 1400 lm |

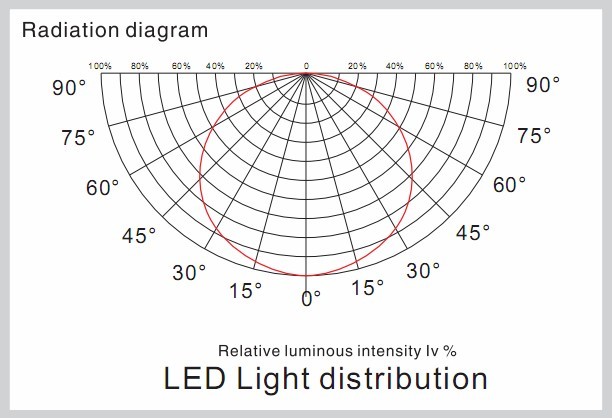

Light Distribution Graph

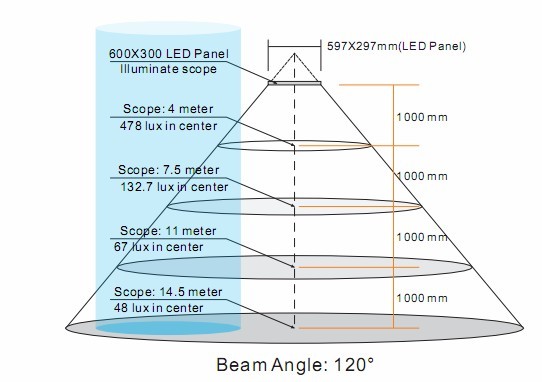

Illumination Intensity Chart: ( White )
