Details
Features
- Available in 12V DC maximum
- Very bright & low power consumption
- Operating temperature: -20°C~50 °C
- Long life span LED lights, more than 50,000 hours+.
- Adhesive back, peel& stick!
- Super thin, 8mm only.
- Dimmable to 6V DC.
- Water-proof, IP67.
Applications
Ideal for sign letters and channel letters, concealed lights.
Paramter
| Module series : Plastic house 2LED (New) | ||||||
| Part number | Color | LED QTY/Module | Lumen/Module | Voltage | Power/Module | packing means |
| FV-MD-PL5050RGB-12-1 | Red | 1 | 2 | DC12v | 0.25Watt | 50 / pack |
| Green | 4 | |||||
|
2.5 | |||||
| FV-MD-PL5050R-12-1 | Red | 1 | 6 | DC12V | 0.24 watt | 50 / link |
| FV-MD-PL5050Y-12-1 | Yellow | 1 | 6 | DC12V | 0.24 watt | 50 / link |
| FV-MD-PL5050B-12-1 | Blue | 1 | 7.5 | DC12V | 0.24 watt | 50 / link |
| FV-MD-PL5050G-12-1 | Green | 1 | 12 | DC12V | 0.24 watt | 50 / link |
| FV-MD-PL5050W-12-1 | white | 1 | 14.5 | DC12V | 0.24 watt | 50 / link |
| FV-MD-PL5050WW-12-1 | warm White | 1 | 18 | DC12V | 0.24 watt | 50 / link |
| FV-MD-PL5050P-12-1 | pink | 1 | 6 | DC12V | 0.24 watt | 50 / link |

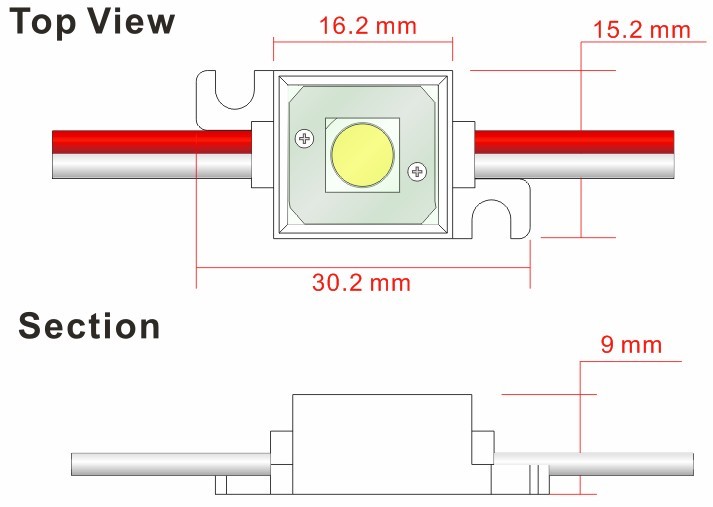

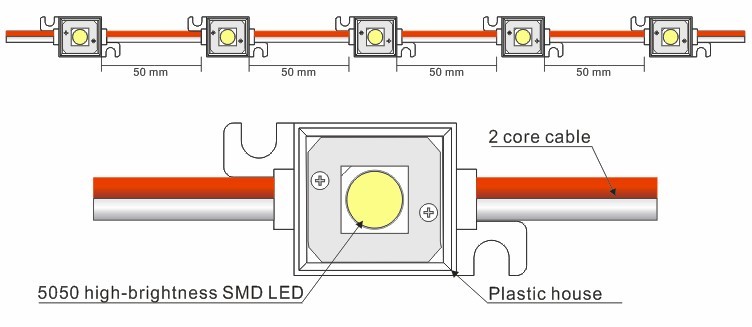

Dimension
