Details
Features
- Available in 12V DC maximum
- Very bright & low power consumption
- Operating temperature: -20°C~50 °C
- Long life span LED lights, more than 50,000 hours+.
- Adhesive back, peel& stick!
- Super thin, 8mm only.
- Dimmable to 6V DC.
- Water-proof, IP67.
Applications
Ideal for sign letters and channel letters, concealed lights.
Parameter
| Module series : Plastic house(rectangle) , 9 LED/Module | ||||||
| Part number | Color | LED QTY/Module | Lumen/Module | Voltage | Power/Module | Packing means |
| FV-MD-PL5050RGB-12-30 | Red | 2 | 4 | DC12v | 0.25Watt | 50 / pack |
| Green | 8 | |||||
|
5 | |||||
| FV-MD-PL1006R-12-9 | Red | 9 | 18 | DC 12V | 0.72 watt | 50 module / link |
| FV-MD-PL1006Y-12-9 | Yellow | 9 | 18 | DC 12V | 0.72 watt | 50 module / link |
| FV-MD-PL1006B-12-9 | Blue | 9 | 22.5 | DC 12V | 0.72 watt | 50 module / link |
| FV-MD-PL1006G-12-9 | Green | 9 | 36 | DC 12V | 0.72 watt | 50 module / link |
| FV-MD-PL1006W-12-9 | White | 9 | 58.5 | DC 12V | 0.72 watt | 50 module / link |
| FV-MD-PL1006WW-12-9 | Warm white | 9 | 54 | DC 12V | 0.72 watt | 50 module / link |
| FV-MD-PL1006P-12-9 | Pink | 9 | 18 | DC 12V | 0.72 watt | 50 module / link |

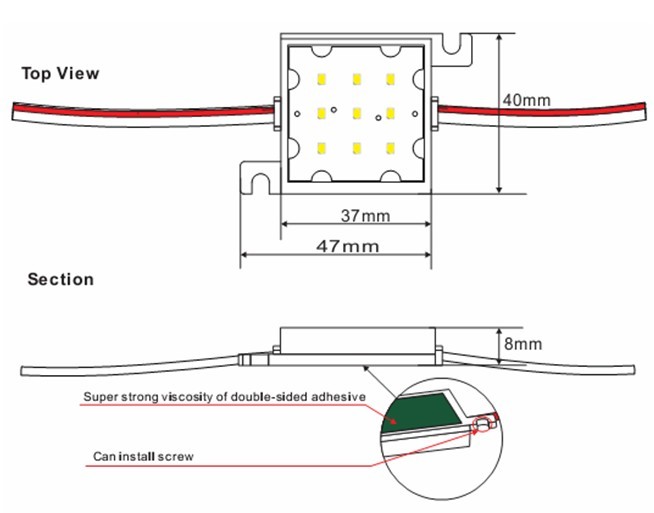

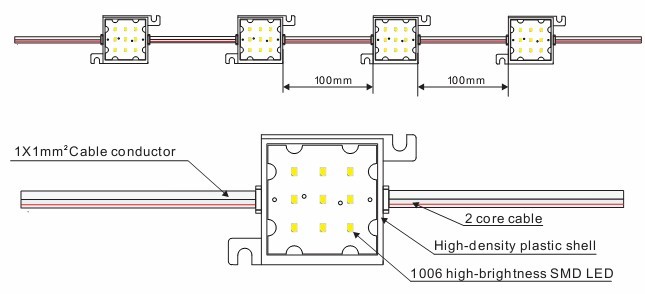

Dimension
