Details
Features
- Available in 12V DC maximum
- Very bright & low power consumption
- Operating temperature: -20°C~50 °C
- Long life span LED lights, more than 50,000 hours+.

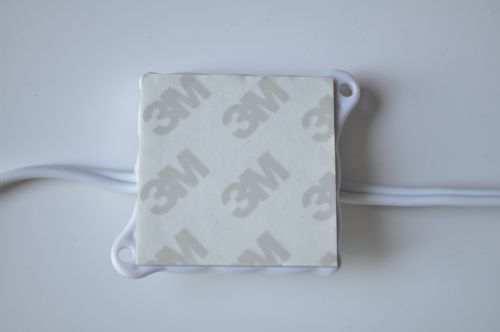

- Adhesive back, peel& stick!
- Super thin, 8mm only.
- Dimmable to 6V DC.
- Water-proof, IP67.
Applications
Ideal for sign letters and channel letters, concealed lights.
Parameter

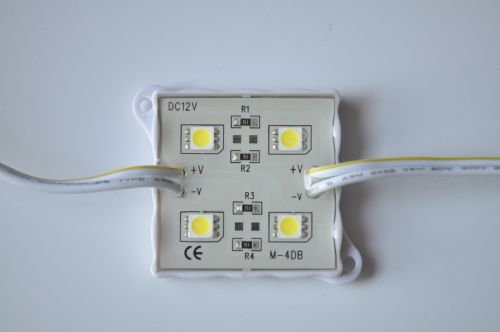

| Module series : Plastic house (rectangle) 5050 4 LED/Module | ||||||
| Part number | Color | LED QTY/Module | Lumen/Module | Voltage | Power/Module | packing means |
| FV-MD-PL5050R-12-4 | Red | 4 | 24 | DC 12V | 0.96 watt | 50 module/link |
| FV-MD-PL5050Y-12-4 | Yellow | 4 | 24 | DC 12V | 0.96 watt | 50 module/link |
| FV-MD-PL5050B-12-4 | Blue | 4 | 30 | DC 12V | 0.96 watt | 50 module/link |
| FV-MD-PL5050G-12-4 | Green | 4 | 48 | DC 12V | 0.96 watt | 50 module/link |
| FV-MD-PL5050W-12-4 | White | 4 | 60~78 | DC 12V | 0.96 watt | 50 module/link |
| FV-MD-PL5050WW-12-4 | Warm white | 4 | 48~72 | DC 12V | 0.96 watt | 50 module/link |
| FV-MD-PL5050P-12-4 | Pink | 4 | 24 | DC 12V | 0.96 watt | 50 module/link |
