Details
Features
- Available in 12V DC maximum
- Very bright & low power consumption
- Operating temperature: -20°C~50 °C
- Long life span LED lights, more than 50,000 hours+.
- Adhesive back, peel& stick!
- Super thin, 8mm only.
- Dimmable to 6V DC.
- Non-Waterproof, IP20.
Applications
Ideal for sign letters and channel letters, concealed lights,indoor only
Parameter

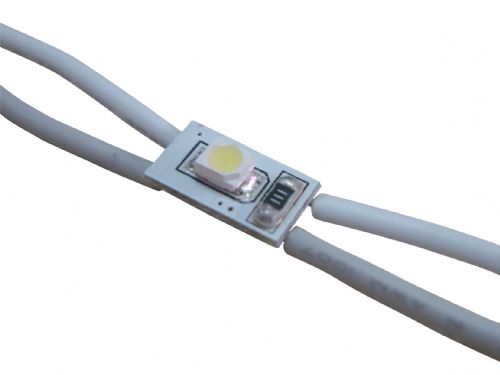

Mini Module series : 3528 1LED/Module | |||||||
Part number |
|
LED QTY/Module | Lumen/Module | Voltage | Power/Module | packing means | |
FV-MD-NW3528+335R-12-1 | Red | 1 | 2 | DC12V | 0.08 watt | 50 / link | |
FV-MD-NW3528+335Y-12-1 | Yellow | 1 | 2 | DC12V | 0.08 watt | 50 / link | |
FV-MD-NW3528+335B-12-1 | Blue | 1 | 2.5 | DC12V | 0.08 watt | 50 / link | |
FV-MD-NW3528+335G-12-1 | Green | 1 | 4 | DC12V | 0.08 watt | 50 / link | |
FV-MD-NW3528+335W-12-1 | white | 1 | 6.5 | DC12V | 0.08 watt | 50 / link | |
FV-MD-NW3528+335WW-12-1 | warm White | 1 | 6 | DC12V | 0.08 watt | 50 / link | |
FV-MD-NW3528+335P-12-1 | pink | 1 | 2 | DC12V | 0.08 watt | 50 / link |
