Details

      Features

  1. Available in DC24V maximum.
  2. Very bright & low power consumption.
  3. Operating temperature: -20~50C°.
  4. Long life span LED lights, more than 50,000 hours +.
  5. Dimmable to 6V DC.
  6. Water-proof, IP67.

      Paramter

Aluminum series : 3528 96LED/meter
Part number Color Size LED QTY/meter Lumen/meter Voltage Power/meter
FV-RD-A3528RGB-12-96
Red
62.5mm 96 192 DC12v 7.68 watt
Green
62.5mm 384
Blue
62.5mm 240
FV-RD-A3528R-12-96
Red
62.5mm 96 192 DC12V 7.68 watt
FV-RD-A3528Y-12-96
Yellow
62.5mm 96 192 DC12V 7.68 watt
FV-RD-A3528B-12-96
Blue
62.5mm 96 120 DC12V 7.68 watt
FV-RD-A3528G-12-96
Green
62.5mm 96 384 DC12V 7.68 watt
FV-RD-A3528W-12-96
 White
62.5mm 96 624 DC12V 7.68 watt
FV-RD-A3528WW-12-96
Warm white
62.5mm 96 576 DC12V 7.68 watt
FV-RD-A3528P-12-96
Pink
62.5mm 96 192 DC12V 7.68 watt

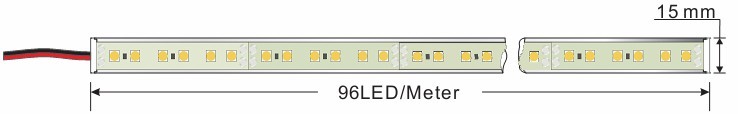

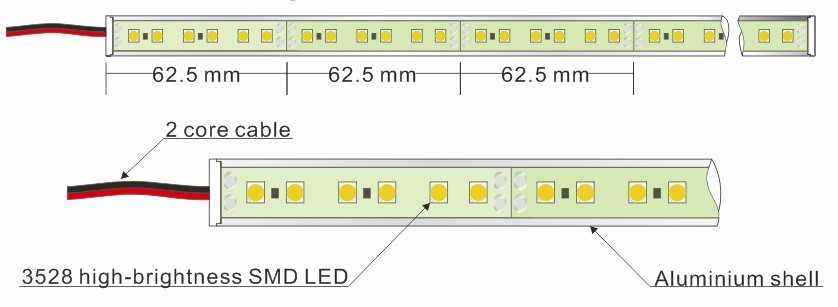

      Dimension
