Details

      Features

  1. Available in DC12V maximum.
  2. Very bright & low power consumption.
  3. Operating temperature: -20~50 C°.
  4. Long life span LED lights, more than 50,000 hours +.
  5. Dimmable to 6V DC.
  6. Water-proof, IP67.

      Applications

         Ideal for sign letters and channel letters, concealed lights, room lighting, equipment.

             Parameter

Aluminium series: 3528180 LED/meter
Part number Color LED QTY/meter Lumen/meter Voltage Power/meter
FV-RD-A3528R-12-180 Red 180 360 DC 12V 14.4 watt
FV-RD-A3528Y-12-180 Yellow 180 360 DC 12V 14.4 watt
FV-RD-A3528B-12-180 Blue 180 450 DC 12V 14.4 watt
FV-RD-A3528G-12-180 Green 180 720 DC 12V 14.4 watt
FV-RD-A3528W-12-180  White 180 1170 DC 12V 14.4 watt
FV-RD-A3528WW-12-180 Warm white 180 1080 DC 12V 14.4 watt
FV-RD-A3528P-12-180 Pink 180 360 DC 12V 14.4 watt

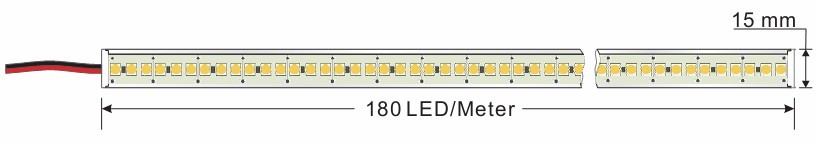

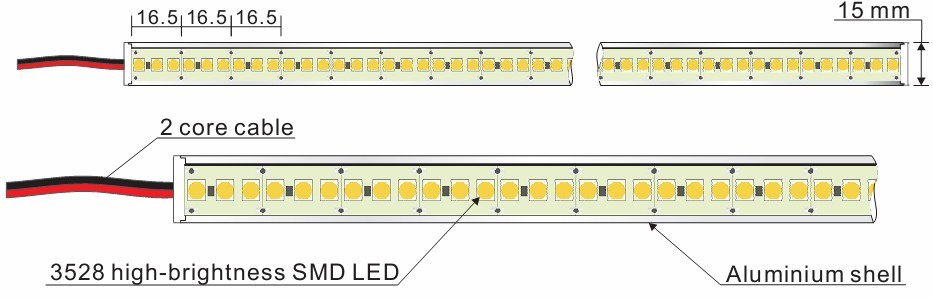

      Dimension
