Details

Features

  1. Available in 12V DC maximum
  2. Very bright & low power consumption
  3. Operating temperature: -20°~50 °
  4. Long life span LED lights, more than 50,000 hours+.
  5. Adhesive back, peel& stick!
  6. Dedicated controller (DC12)
  7. Non-water-proof, IP20.

       Applications

                 Ideal for sign letters and channel letters, concealed lights, room lighting, equipment.

       Parameter

Ribbon series : 5050  30LED/meter
Part number Color D LED QTY/meter Lumen/
meter
Voltage Power/meter Packing means
FV-30-S5050RGB
Red
100mm 30 60 DC12v 7.2Watt 5Meter/reel
Green
100mm 120
Blue
100mm 75
FV-30-S5050R
Red
100mm 30 180 DC12v 7.2watt 5Meter/reel
FV-30-S5050Y
Yellow
100mm 30 180 DC12v 7.2watt 5Meter/reel
FV-30-S5050B
Blue
100mm 30 225 DC12v 7.2watt 5Meter/reel
FV-30-S5050G
Green
100mm 30 360 DC12v 7.2watt 5Meter/reel
FV-30-S5050W
white
100mm 30 585 DC12v 7.2watt 5Meter/reel
FV-30-S5050WW
warm White
100mm 30 540 DC12v 7.2watt 5Meter/reel
FV-30-S5050P
Pink
100mm 30 180 DC12v 7.2watt 5Meter/reel
Ribbon series : 5050  60LED/meter
Part number Color D LED QTY/meter Lumen/
meter
Voltage Power/meter Packing means
FV-60-S5050RGB
Red
50mm 60 120 DC12v 14.4 Watt 5Meter/reel
Green
50mm 240
Blue
50mm 150
FV-60-S5050R
Red
50mm 60 360 DC12v 14.4 watt 5Meter/reel
FV-60-S5050Y
Yellow
50mm 60 360 DC12v 14.4 watt 5Meter/reel
FV-60-S5050B
Blue
50mm 60 450 DC12v 14.4 watt 5Meter/reel
FV-60-S5050G
Green
50mm 60 720 DC12v 14.4 watt 5Meter/reel
FV-60-S5050W
White
50mm 60 1170 DC12v 14.4 watt 5Meter/reel
FV-60-S5050WW
Warn White
50mm 60 1080 DC12v 14.4 watt 5Meter/reel
FV-60-S5050P
Pink
50mm 60 360 DC12v 14.4 watt 5Meter/reel

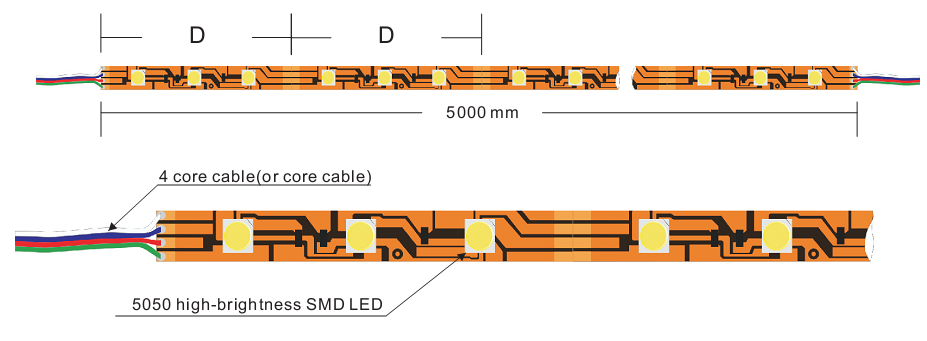

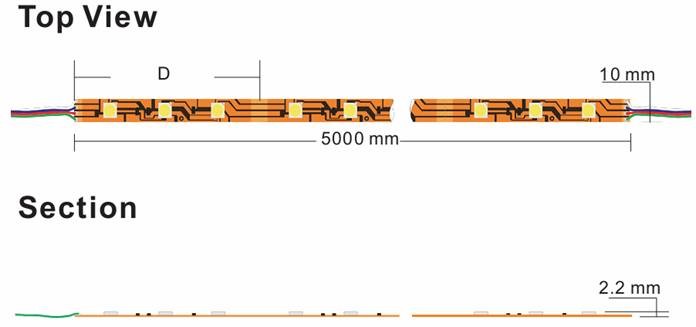

       Dimension

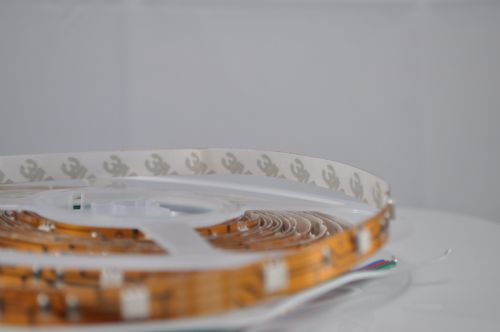

       Packing Details
