Details

       Features

  1. Available in 12V DC maximum
  2. Very bright & low power consumption
  3. Operating temperature: -20°~50 °
  4. Long life span LED lights, more than 50,000 hours+.
  5. Adhesive back, peel& stick!
  6. Dimmable to 6V DC.
  7. Non-waterproof, IP20.

        Applications

                    Ideal for sign letters and channel letters, concealed lights, room lighting.

        Parameter

Ribbon series:3528 60 LED/meter
Part number Color D LED QTY/meter Lumen/meter Voltage Power/meter Packing means
FV-60-S3528R
Red
50 mm 60 120 12 4.8 watt 5meter/reel
FV-60-S3528Y
Yellow
50 mm 60 120 12 4.8 watt 5meter/reel
FV-60-S3528B
Blue
50 mm 60 150 12 4.8 watt 5meter/reel
FV-60-S3528G
Green
50 mm 60 240 12 4.8 watt 5meter/reel
FV-60-S3528W
White
50 mm 60 390 12 4.8 watt 5meter/reel
FV-60-S3528WW
Warm white
50 mm 60 360 12 4.8 watt 5meter/reel
FV-60-S3528P
Pink
50 mm 60 120 12 4.8 watt 5meter/reel

Ribbon series:3528 120LED/meter
Part number Color D LED QTY/meter Lumen/meter Voltage Power/meter packing means
FV-120-S3528R
Red
25 mm 120 240 12 9.6 watt 5meter/reel
FV-120-S3528Y
Yellow
25 mm 120 240 12 9.6 watt 5meter/reel
FV-120-S3528B
Blue
25 mm 120 300 12 9.6 watt 5meter/reel
FV-120-S3528G
Green
25 mm 120 480 12 9.6 watt 5meter/reel
FV-120-S3528W
White
25 mm 120 780 12 9.6 watt 5meter/reel
FV-120-S3528WW
Warm white
25 mm 120 720 12 9.6 watt 5meter/reel
FV-120-S3528P
Pink
25 mm 120 240 12 9.6 watt 5meter/reel

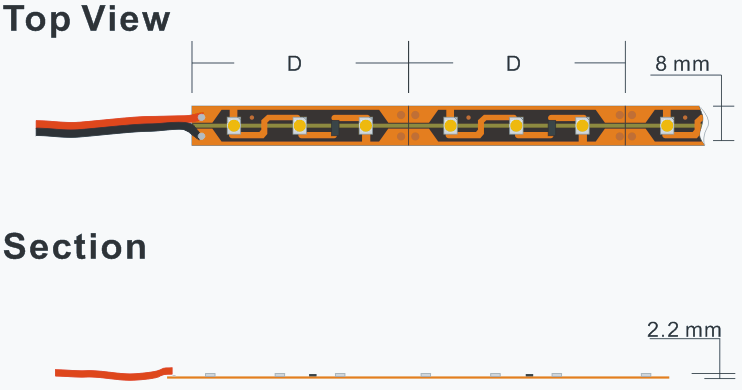

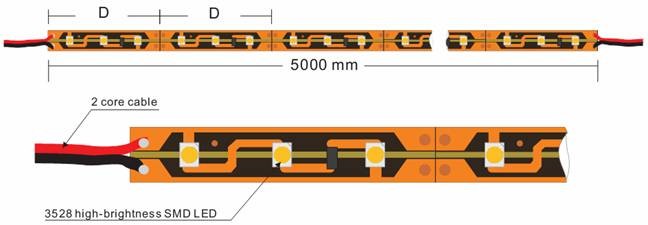

        Dimension



       Packing Details
